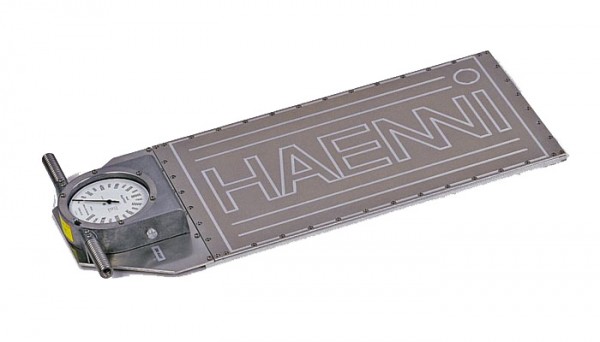

Used Haenni Dial wheel weighers
Only 0.67" high
$2395 each


Close up of Dial Display

Application
NTEP approved Measurement of wheel and axle loads of vehicles with pneumatic tires
Ranges
0...20 000 lb
Temperature range
0...120°F
Accuracy
NIST H 44
Materials
Corrosion resistant aluminum-alloys and stainless steel
Type of protection
Watertight IP 65 (IEC 144)
Dial
White, black markings, according to NIST H 44
Lens
Acrylic glass (perspex), unbreakable
Weight
35 lbs
Platform height
Only 0.67" high






Close up of Dial reading
20,000 lb capacity

Scale dimensions



Technical Data
Standard NIST H 44 Class 4
Range 0...20 000 lb
Division 50 lb
Accuracy in operation ±100 lb (up to 2500 lb)
±200 lb (2500...10 000 lb)
±300 lb (10 000...20 000 lb)
Loading limit 22 000 lb
Permissible load per area 170 lb/in2
Loading limit per area 340 lb/in2
Temperature range in operation 0°F ... 120°F
Temperature range storage -20°F ... 140°F
Type of protection (IEC 144) IP 65
Operating site Firm and level ground, max.
10 mm bend through, max. 5% slope (~3°)
Dimensions platform height 0.67 in
Dimensions active surface 26 x 15 in (170 lb /in2)2)
26 x 15.5 in (80 lb / in2)2)
Overall size approx. 38 x 3 x 15.5 in
